2 Imperative Programming with OCaml🔗

2.1 OCaml Imperative Programming

2.2 Refs

2.3 Sequence

2.4 Implement a Counter

2.5 The Trade-Off Of Side Effects

2.6 Structural vs. Physical Equality

2.7 Mutable fields

2.8 Implementing Refs

2.9 Arrays

2.10 Control structures

2.11 Hashtbl Module

2.12 List.assoc as Map

2.13 Build a Map Using Functions

2.1 OCaml Imperative Programming🔗

So Far, Only Functional Programming We haven’t given you any way so far to change something in memory. All you can do is create new values from old. This makes programming easier since it supports mathematical (i.e., functional) reasoning.

Don’t care whether data is shared in memory
Aliasing is irrelevant
Calling a function f with the same argument always produces the same result. For all ‘x‘ and ‘y‘, we have ‘f x = f y‘ when ‘x = y‘

But sometimes it is useful for values to change. We may need a unique counter that increments in every call or we may need an efficient hash table. OCaml variables are immutable, but OCaml has references, fields, and arrays that are actually mutable, I.e., they can change

2.2 Refs🔗

There are two built-in mutable data structures in OCaml: ‘refs‘ and ‘arrays‘. ‘’a ref‘ is pointer to a mutable value of type ‘’a‘. There are three basic operations on references: Allocate a reference: ref e creates a new reference cell containing the value of expression e.

OCaml REPL

ref ;;

 let x = ref 10;;
 let y = ref "hello";;

# - : 'a -> 'a ref = <fun>
# val x : int ref = {contents = 10}
#

val y : string ref = {contents = "hello"}

Read the value stored in reference: !t dereferences the reference cell t to get the current value.

OCaml REPL

(!) ;;
 let t = ref 10;;
 !t ;;

# - : 'a ref -> 'a = <fun>
# val t : int ref = {contents = 10}
#

- : int = 10

Change the value stored in reference: t := e updates the reference cell t with the value of expression e.

OCaml REPL

(:=) ;;

 let t = ref "hello";;
 !t ;;
 t := "world";;
 !t ;;

# - : 'a ref -> 'a -> unit = <fun>
# val t : string ref = {contents = "hello"}
# - : string = "hello"
# - : unit = ()
#

- : string = "world"

Binding variable ‘x‘ to a reference is immutable. The contents of the reference x points to may change.

OCaml REPL

let z = 3;;
 let x = ref z;;
 let y = x;;

 x := 4;;
 !y;;
 ;;

# val z : int = 3
# val x : int ref = {contents = 3}
# val y : int ref = {contents = 3}
# - : unit = ()
# - : int = 4
#

Here, ‘z‘ is bound to 3. It is immutable. ‘x‘ and ‘y‘ are bound to a reference. The ‘contents‘ of the reference is mutable. x := 4 will update the ‘contests‘ to 4. ‘x‘ and ‘y‘ now points to the value 4. Therefore, reading y using !y will return int = 4.

Here, variables y and x are aliases. In ‘let y = x‘, variable ‘x‘ evaluates to a location, and ‘y‘ is bound to the same location. So, changing the contents of that location will cause both ‘!x‘ and ‘!y‘ to change.

Evaluation of References

Evaluate ‘e‘ to a value ‘v‘, allocate a new location loc in memory to hold ‘v‘, store ‘v‘ in ‘contents‘ of memory at loc, return loc (which is itself a value). For example, e1 := e2 evaluates ‘e2‘ to a value ‘v2‘, evaluates e1 to a location loc, stores ‘v2‘ in ‘contents‘ of memory at loc, returns ‘()‘

Type checking Rules:


(ref e)  : t ref  if  e : t
(e1 := e2)  : unit if e1 : t ref and e2 : t

2.3 Sequence🔗

In OCaml, the semicolon ; is used to sequence expressions. It means “evaluate the first expression for its side effects, discard its result, then evaluate the second expression and return its result.”

e1; e2

‘e1; e2‘ is the same as ‘let () = e1 in e2‘. When evaluating, evaluate e1 to a value ‘v1‘, evaluate ‘e2‘ to a value ‘v2‘, return ‘v2‘. It throws away ‘v1‘ – so ‘e1‘ is useful only if it has side effects, e.g., if it modifies a reference’s contents or accesses a file.

OCaml REPL

let print_both (s, t) =
    print_string s;
    print_string t;
    "Printed s and t";;

#

val print_both : string * string -> string = <fun>

For typechecking, e1;e2 : t if e1 : unit and e2 : t.

Note: Dafny verification may timeout. Bold{;;} versus ‘;‘. ‘;;‘ ends an expression in the top-level of OCaml. Use it to say: “Give me the value of this expression”. It is not used in the body of a function. It is not needed after each function definition.

Grouping Sequences

If you’re not sure about the scoping rules, use begin...end, or parentheses, to group together statements with semicolons

OCaml REPL

let x = ref 0
    let f () =
      begin
        print_string "hello";
        x := !x + 1
      end;;

 let x = ref 0
    let f () =
      (
        print_string "hello";
        x := !x + 1
      )
 ;;

# val x : int ref = {contents = 0}
val f : unit -> unit = <fun>
#

val x : int ref = {contents = 0}
val f : unit -> unit = <fun>

Semicolon Examples


1 ; 2 ;;
(* 2 – value of 2nd expression is returned *)
(1 + 2) ; 4 ;;
(* 4 – value of 2nd expression is returned *)
1 + (2 ; 4) ;;
(* 5 – value of 2nd expression is returned to 1 + *)
1 + 2 ; 4 ;;
(* 4 – because + has higher precedence than ; *)

2.4 Implement a Counter🔗

OCaml REPL

let counter = ref 0 ;;

 let next =
      fun () -> counter := !counter + 1; !counter ;;

 next ();;
 next ();;
 ;;

# val counter : int ref = {contents = 0}
# val next : unit -> int = <fun>
# - : int = 1
# - : int = 2
#

In this implementation, the ‘counter‘ is visible outside the ‘next‘ function. For example:


next ();;
 : int = 1
next ();;
 : int = 2
let _ = count := 0;
next ();;
 : int = 1

The last call to ‘next‘ did not increment the counter, instead returned 1. It is not the preferred behavior of ‘next‘.

To avoid this, we can hide the reference

OCaml REPL

let next =
    let ctr = ref 0 in
    fun () ->
        ctr := !ctr + 1; !ctr;;

#

val next : unit -> int = <fun>

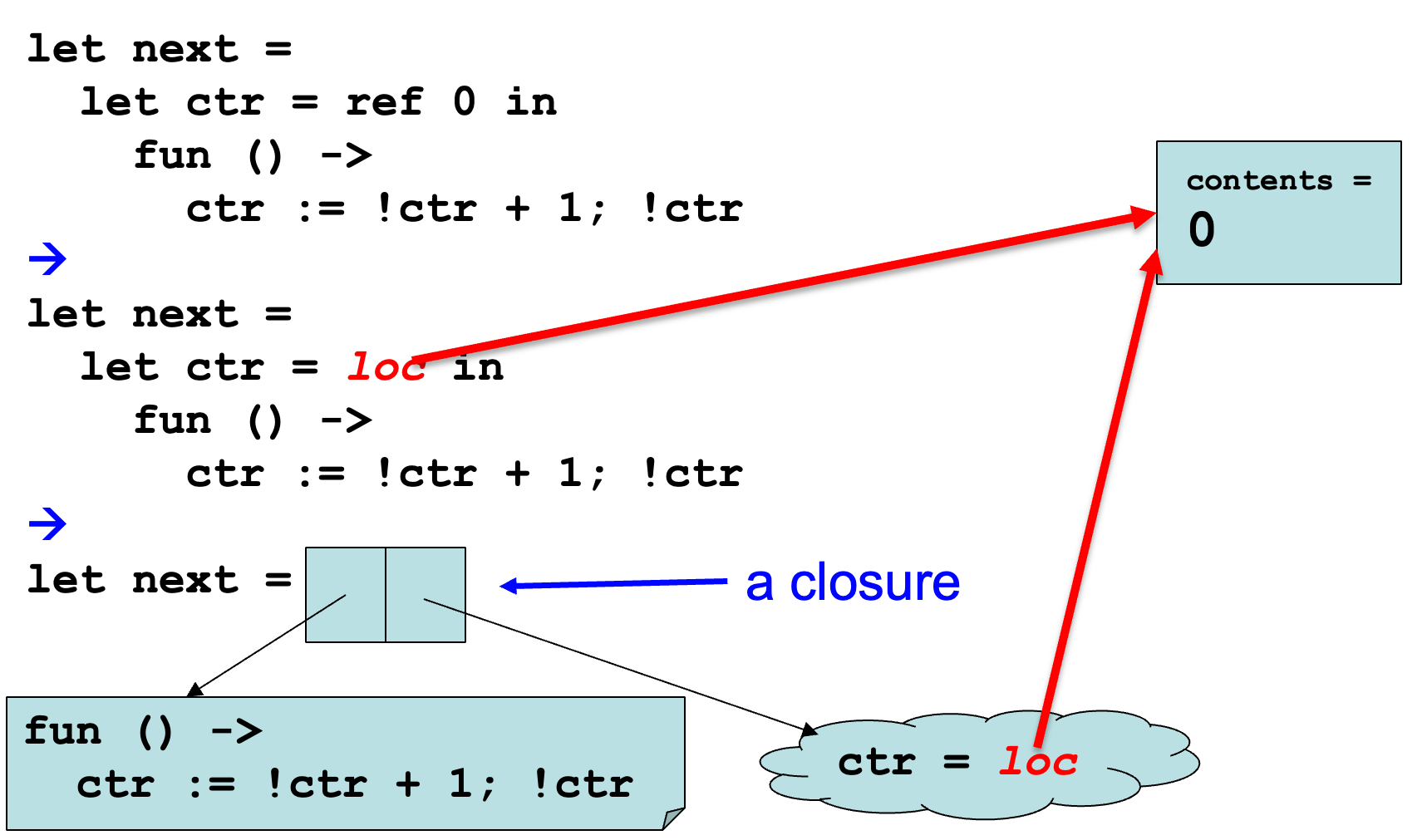

Here is the visulization of hiding the Reference

2.5 The Trade-Off Of Side Effects🔗

Side effects are necessary. That’s usually why we run software! We want something to happen that we can observe. But they also make reasoning harder.

Order of evaluation now matters
No referential transparency. Calling the same function with the same arguments may produce different results
Aliasing may result in hard-to-understand bugs. If we call a function with refs r1 and r2, it might do strange things if r1 and r2 are aliases

Order of Evaluation

Consider this example

OCaml REPL

let y = ref 1;;
 let f _ z = z+1;;  (* ignores first arg *)
 let w = f (y:=2) !y;;
 w;;

# val y : int ref = {contents = 1}
# val f : 'a -> int -> int = <fun>
# val w : int = 2
#

- : int = 2

What is w if f’s arguments are evaluated left to right? 3

What if they are evaluated right to left? 2

In OCaml, the order of evaluation is unspecified. This means that the language doesn’t take a stand, and different implementations may do different things. On Mac, OCaml bytecode interpreter and x86 native code evaluates right to left. You should strive to make your programs produce the same answer regardless of evaluation order.

Quiz: If evaluation order is left to right, rather than right to left? Will ‘w‘’s value differ?**


let y   =  ref 1 in
let f z =  z := !z+1; !z in
let w   =  (f y) + (f y) in
w

Answer: No

Quiz: If evaluation order is left to right, rather than right to left? , will w’s value differ?**


let y   =  ref 1 in
let f z =  z := !z+1; !z in
let w   =  (f y) + !y in
w

Answer: Yes.

Quiz: Which f is not referentially transparent? (I.e., not the case that f x = f y for all x = y) ?


A. let f z =
    let y = ref z in
    y := !y + z;
    !y
B. let f =
    let y = ref 0 in
    fun z ->
     y := !y + z; !y
C. let f z =
    let y = z in
    y+z
D. let f z = z+1

Answer: B

2.6 Structural vs. Physical Equality🔗

‘=‘ compares objects structurally. ‘<>‘ is the negation of structural equality
‘==‘ compares objects physically. ‘!=‘ is the negation of physical equality


([1;2;3]  =  [1;2;3]) = true
([1;2;3] <> [1;2;3]) = false
([1;2;3] == [1;2;3]) = false
([1;2;3]  != [1;2;3]) = true

We mostly use ‘=‘ and ‘<>‘. E.g., the ‘=‘ operator is used for pattern matching. But ‘=‘ is a problem with cyclic data structures. If a linked list have a cycle, ‘=‘ will not terminate.

Equality of refs

Refs are compared structurally by their contents, physically by their addresses

OCaml REPL

ref 1 = ref 1;;                 (* true *)
 ref 1 <> ref 2 ;;              (* true *)
 ref 1 != ref 1;;                (* true *)
 let x = ref 1 in x == x ;;  (* true *)
 ;;

# - : bool = true
# - : bool = true
# - : bool = true
# - : bool = true
#

2.7 Mutable fields🔗

Fields of a record type can be declared as mutable. For example, here is a record type for students whose field ‘grade‘ is mutable:

OCaml REPL

(* create a record type student with fields name, id, and grade *)
 type point={name:string; id:int; mutable grade:char};;

 (* create a student record *)
 let s = {name="john"; id=1234; grade='B'};;

 (* mutate the grade for the student s *)
 s.grade <- 'A';;
 s;;
 ;;

# type point = { name : string; id : int; mutable grade : char; }
# val s : point = {name = "john"; id = 1234; grade = 'B'}
# - : unit = ()
# - : point = {name = "john"; id = 1234; grade = 'A'}
#

2.8 Implementing Refs🔗

Ref cells are essentially syntactic sugar for a record type with a mutable fiels called ‘contents‘.

OCaml REPL

type 'a ref = { mutable contents: 'a };;
 let ref x = { contents = x };;
 let (!) r = r.contents;;
 let (:=) r newval = r.contents <- newval;;

# type 'a ref = { mutable contents : 'a; }
# val ref : 'a -> 'a ref = <fun>
# val ( ! ) : 'a ref -> 'a = <fun>
#

val ( := ) : 'a ref -> 'a -> unit = <fun>

‘ref‘ type is declared in Stdlib. ‘ref‘ functions are compiled to equivalents of above.

2.9 Arrays🔗

Arrays generalize ref cells from a single mutable value to a sequence of mutable values

OCaml REPL

let v = [|0.; 1.|];;

 v.(0) <- 5.;;

 v;;
 ;;

# val v : float array = [|0.; 1.|]
# - : unit = ()
# - : float array = [|5.; 1.|]
#

Arrays Syntax:


[|e1; ...; en|]

It evaluates to an n-element array, whose elements are initialized to v1 … vn, where e1 evaluates to v1, ..., en evaluates to vn Evaluates them right to left

Here is the type checking rule for arrays;


[|e1; …; en|] : t array  If for all i, each ei : t

Random access


e1.(e2)

It evaluate e2 to integer value v2, evaluate e1 to array value v1, If 0 ≤ v2 < n, where n is the length of array v1, then return element at offset v2 of v1 Else raise Invalid_argument exception

Here is the type checking rule for the array access:


 e1.(e2) : t if e1 : t array and e2 : int

Array update


e1.(e2) <- e3

To evaluate array update, you evaluate e3 to v3, evaluate e2 to integer value v2, evaluate e1 to array value v1, if 0 ≤ v2 < n, where n is the length of array v1, then update element at offset v2 of v1 to v3, else raise Invalid_argument exception. It returns ‘()‘.

Here is the type checking rule for the array update:


e1.(e2) <- e3 : unit if e1 : t array and e2 : int and e3 : t

2.10 Control structures🔗

Traditional loop structures are useful with imperative features:


while e1 do e2 done
for x=e1 to e2 do e3 done
for x=e1 downto e2 do e3 done

OCaml REPL

for i = 1 to 5  do
    Printf.printf "%d " i
 done;;

#
1 2 3 4 5
- : unit = ()

2.11 Hashtbl Module🔗

OCaml REPL

let h = Hashtbl.create 1331;;
 Hashtbl.add h "alice" 100;;
 Hashtbl.add h "bob" 200;;
 Hashtbl.iter (Printf.printf "(%s,%d)\n")  h;;

# val h : ('_weak1, '_weak2) Hashtbl.t = <abstr>
# - : unit = ()
# - : unit = ()
#
(bob,200)
(alice,100)

- : unit = ()

2.12 List.assoc as Map🔗

An association list is an easy implementation of a map (aka dictionary)

OCaml REPL

let d = [("alice", 100); ("bob", 200);
          ("cathy", 300)];; (* (string * int) list *)

 List.assoc "frank" d;;

# val d : (string * int) list = [("alice", 100); ("bob", 200); ("cathy", 300)]
#

Exception: Not_found.

2.13 Build a Map Using Functions🔗

Here’s a functional implementation of the Hashmap, which is noticeably simpler than the equivalent version in C or Java.

OCaml REPL

let empty v = fun _-> 0;;
 let update m k v = fun s->if k=s then v else m s
 let m = empty 0;;
 let m = update m "foo" 100;;
 let m = update m "bar" 200;;
 let m = update m "baz" 300;;
 m "foo";; (* 100 *)
 m "bar";; (* 200 *)
 let m = update m "foo" 101;;
 m "foo";; (* 101 *)

# val empty : 'a -> 'b -> int = <fun>
# val update : ('a -> 'b) -> 'a -> 'b -> 'a -> 'b = <fun>
val m : '_weak1 -> int = <fun>
# val m : string -> int = <fun>
# val m : string -> int = <fun>
# val m : string -> int = <fun>
# - : int = 100
# - : int = 200
# val m : string -> int = <fun>
#

- : int = 101

Challenge: change the code to return all the values for a key
